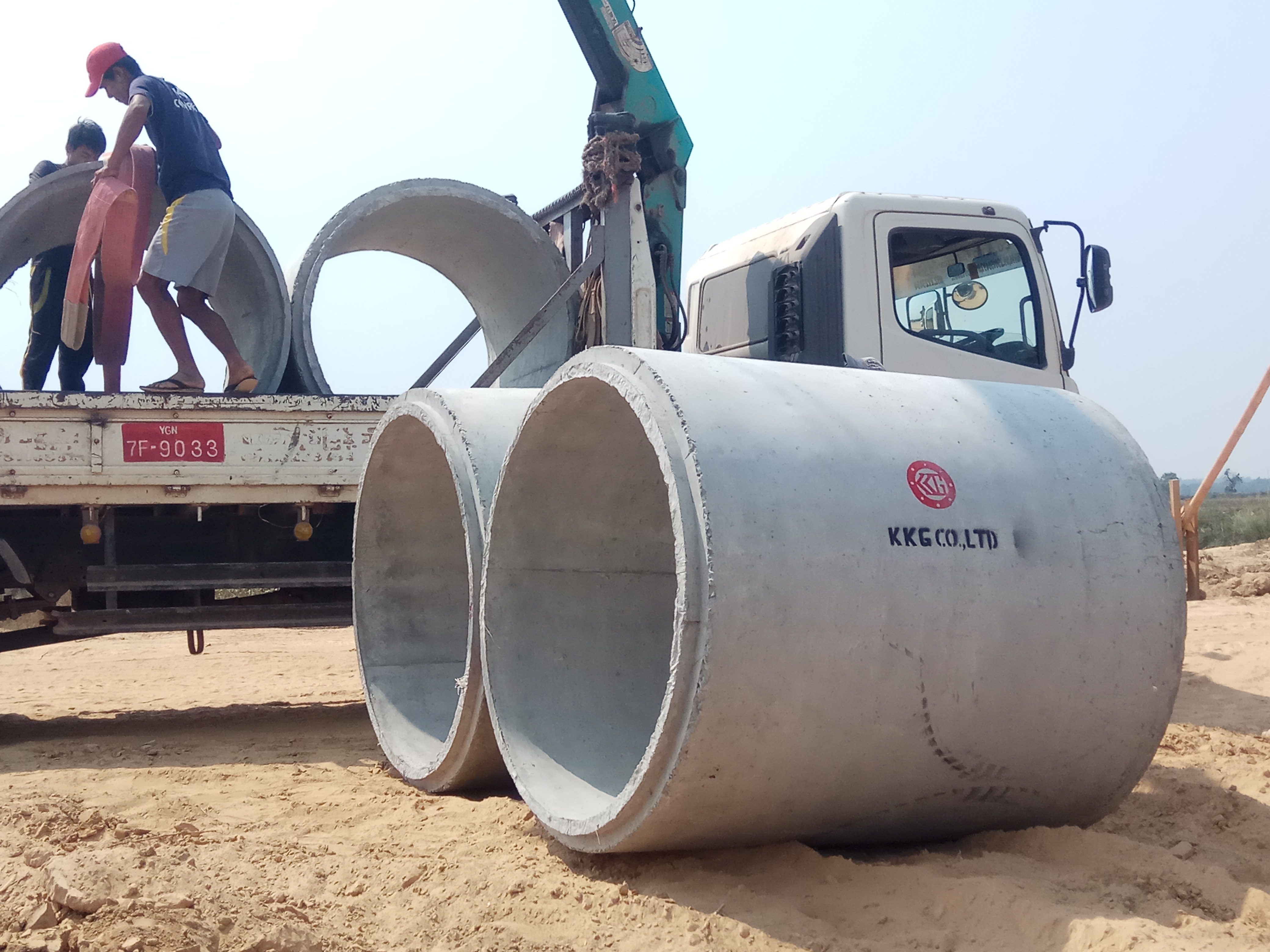

Concrete Pipes


Raw Materials used in production

1. ø5.5mm,ø6.5mm,ø8mm,10mm,12mm Original Steel bar

2. Cement

3. River sand

4. Chipping

Concrete Mixing Ratio

Cement : Sand : Chipping

1           :2.5       :4

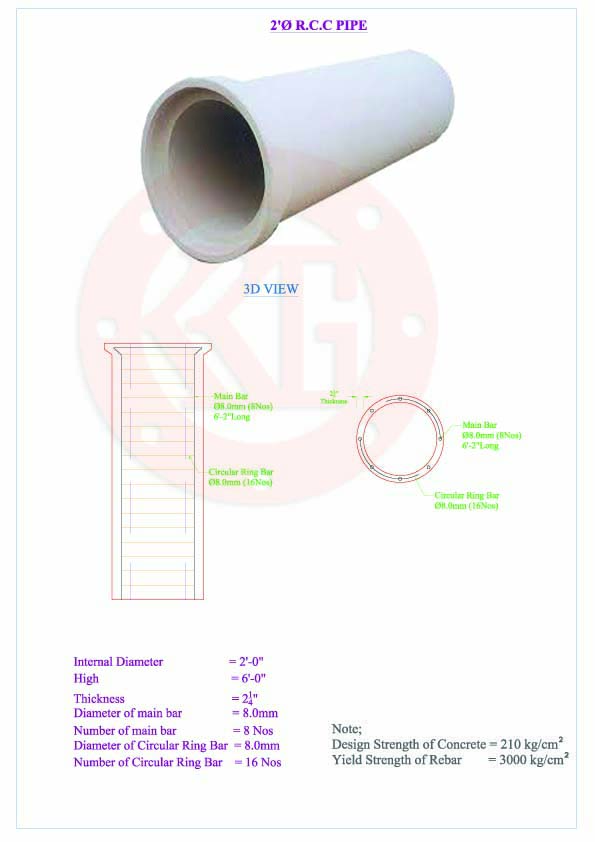

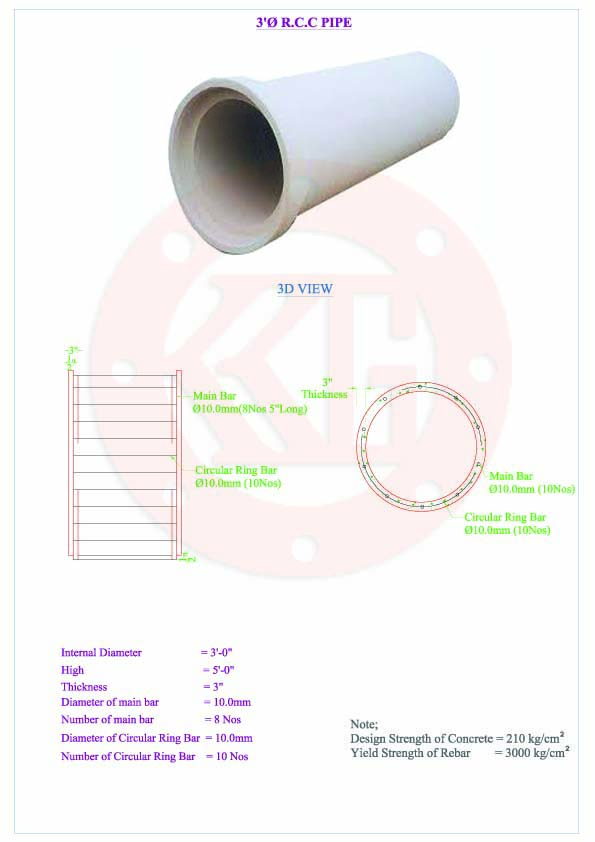

SPECIFICATION OF CONCRETE PIPES

Diameter of concrete Pipe 1ft ( 305mm) 1 1/2ft (457 mm) 2ft ( 610 mm) 2 1/2ft 762 mm) 3ft ( 915mm) 4ft ( 1220 mm)
Length of Concrete Pipe 6 ft (1830 mm ) 6 ft (1830 mm ) 6 ft (1830 mm ) 5 ft (1524 mm ) 5 ft (1524 mm ) 5 ft (1524 mm )
Type of Concrete Pipe Bell Bell Bell Bell Cylinder Cylinder
Diameter of main bar 6.5 mm 6.5 mm 8 mm 8 mm 10 mm 10 mm
No of main bars 7 9 12 14 16 18
Diameter of Circular ring bar 6.5 mm 6.5 mm 8 mm 8 mm 10 mm 10 mm
No of cicular rings 12 12 12 12 14 16
Thickness of Concrete 2 in (52 mm ) 2 1/4 in (58 mm) 2 1/2 in ( 64 mm) 3 in ( 77 mm ) 3 in ( 77 mm ) 3 1/2 in ( 88 mm)
Cement 50 kg 80 kg 120 kg 120 kg 150 kg 200 kg
Concrete Strength ≥ 30 Mpa ≥ 30 Mpa ≥ 30 Mpa ≥ 30 Mpa ≥ 30 Mpa ≥ 30 Mpa
Weight of Pipe 250 kg 350 kg 550 kg 750 kg 850 kg 1350 kg
